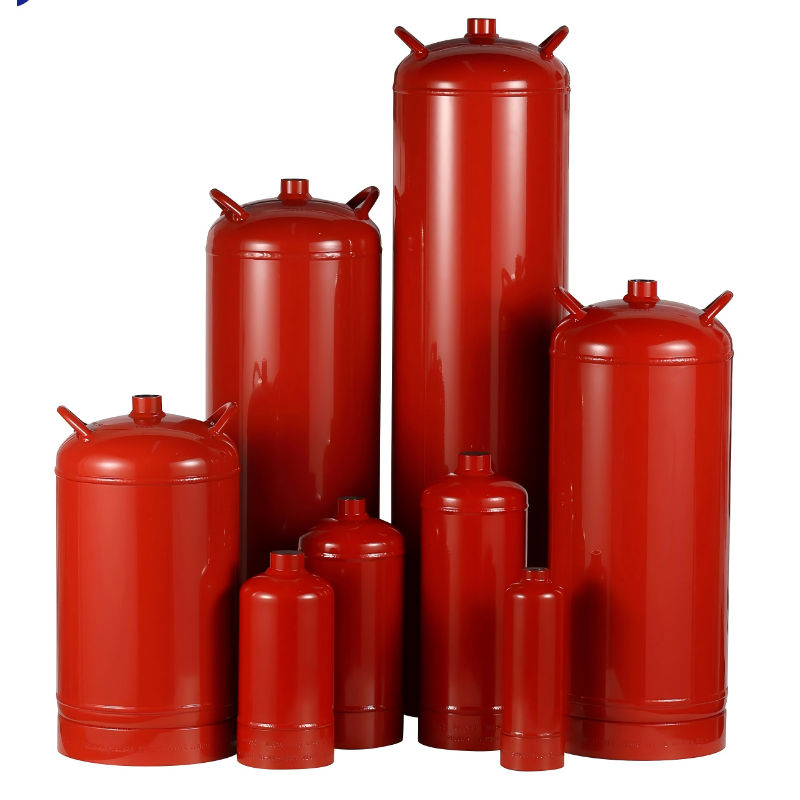

DOT Serial Extinguisher Cylinder
| Capacity | 3LB/7LB/11LB/14LB |
| Design Standard | DOT-4BA/EN3-8 |
| Water Capacity | 1.23L (75 cu in)/ 2.87L (174 cu in)/4.65L (284 cu in)/5.74L (350 cu in) |
| Cylinder Size | Φ85*271mm/Φ130*288mm/Φ150*340mm/Φ150*405mm |
| Material | DC01/HP295 |
| Min Thickness | 1.27mm/1.88mm/2.2mm/2.2mm |
| Cylinder Weight | 1.05kg (2.32 LBS)/2.27kg (5 LBS)/3.79kg (8.36 LBS)/4.38kg (9.66 LBS) |
Description
| Capacity | 3LB/7LB/11LB/14LB |
| Design Standard | DOT-4BA/EN3-8 |
| Water Capacity | 1.23L (75 cu in)/ 2.87L (174 cu in)/4.65L (284 cu in)/5.74L (350 cu in) |
| Cylinder Size | Φ85*271mm/Φ130*288mm/Φ150*340mm/Φ150*405mm |
| Material | DC01/HP295 |
| Min Thickness | 1.27mm/1.88mm/2.2mm/2.2mm |
| Cylinder Weight | 1.05kg (2.32 LBS)/2.27kg (5 LBS)/3.79kg (8.36 LBS)/4.38kg (9.66 LBS) |
| Capacity | 45LB/60LB/75LB/100LB |
| Design Standard | DOT-4BA/EN3-8 |
| Water Capacity | 20.10L (1227 cu in)/27.75L (1693 cu in)/33.98L (2074 cu in)/45.02L (2748 cu in) |
| Cylinder Size | Φ254*492mm/Φ254*650mm/Φ254*770mm/Φ254*1005mm |
| Material | Q345R |
| Min Thickness | 2.5mm |
| Cylinder Weight | 10.43kg (23 LBS)/ 13.20kg (29.1 LBS)/ 15.24kg (33.6 LBS)/ 18.78kg (41.4 LBS) |
